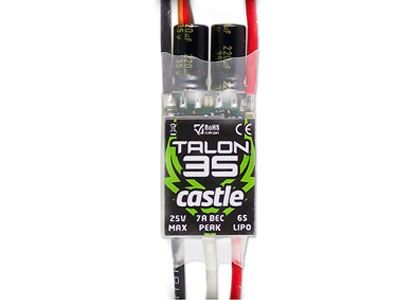

CASTLE Talon 35, 25V 35 AMP ESC, With Heavy Duty BEC
Talon 35 can take on the most extreme maneuvers while keeping it’s cool, and is intended for use in 450 Heli setups running up to 6S, or .10 to .20 fixed wing applications pulling up to 35 amps. It boasts a 7 amp peak/5 amp continuous BEC, keeping even the most draining servos at ease. Talon 35 also offers Castle’s industry-leading helicopter functions, not to mention easy programming using the Castle Link USB adapter. The compact layout and thin profile make mounting Talon 35 simple and stress-free in any setup.
Product Features
Power System Alerts:
Talon ESCs are programmed to sound a number of tunes and codes using the motor as well as flashing LED patterns to alert users to certain conditions regarding their power system, such as over temperature, excessive load and locked head speed.
Telemetry Capable:
Telemetry has the potential not only to improve the safety of our models by monitoring battery voltages, ESC temperature, and other critical parameters, but it also creates other opportunities to get even more fun out of flying because you’ve essentially reduced the risks of “unknown” inevitable crashes. Think of the benefits to be had from alarms that will sound to warn you when there’s interference about or if your receiver battery is running unexpectedly low. Requires purchase of Castle Telemetry Link for S.BUS2 (Item # P-CC010-0152-00) and compatible Futaba Radio or Castle Telemetry Link for X-BUS (Item# P-CC010-0148-00) and a compatible Spektrum Radio.
Programmable:
Fully programmable Castle feature set using Castle Link USB adapter and freely downloadable Castle Link Windows software.
With the Castle Link USB Programming Kit you can use your WindowsT PC to easily program your controller. Castle Link includes all code for all Castle Link compatible hobby products in one convenient download. Note: Castle Link software requires a Castle Link USB Adapter and a computer that is running Windows. Castle Link is compatible with Windows Vista, Windows 7, Windows 8 and Windows 10. Macintosh users may take advantage of software such as Parallels Desktop, VMware Fusion, or Apple’s Boot Camp along with Windows Vista, Windows 7, Windows 8, or Windows 10 to run the Castle Link software, provided the Macintosh has an Intel processor. Macintosh installation is not supported by Castle Creations.
Specifications
| Input Voltage Range: | MIN: 2S LiPo MAX: 6S LiPo |
| Max Current: | 35 amps* full throttle |
| Max Voltage: | N/A |
| BEC Voltage: | 5.5 volts |
| BEC Output: | 7 amp peak** 5 amp continuous (always check servo draw prior to first flight) |
| Size: | Width: 0.88″ (22.4mm) Length: 1.93″ (49mm) Depth: 0.33″ (8.4mm) |
| Weight: | 0.98 oz. (27.8g) with wires 0.42 oz (12g) without wires |
| Connectors: | N/A |
Items Needed for Operation:
Battery connector (sold separately)
Motor connectors (sold separately)
Application Guidelines:
N/A
