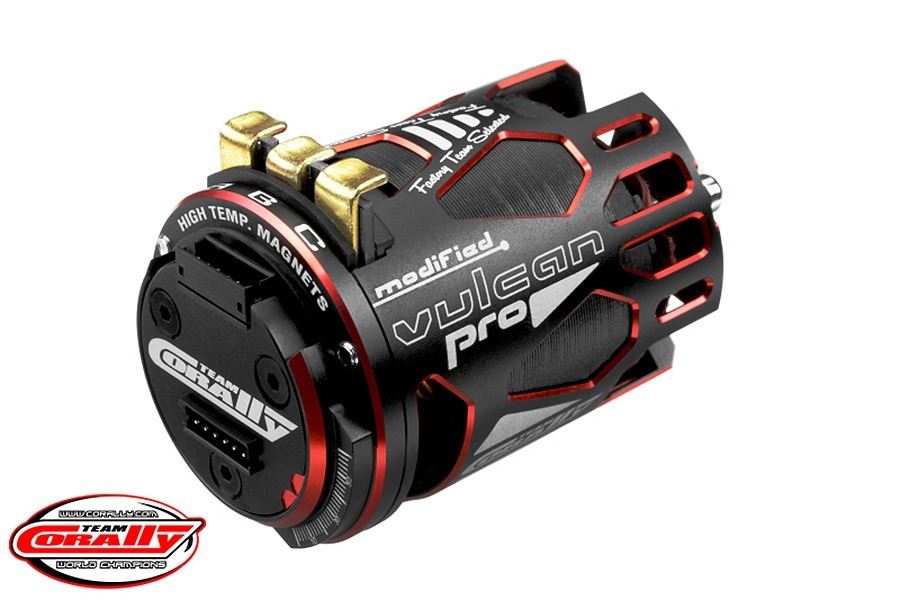

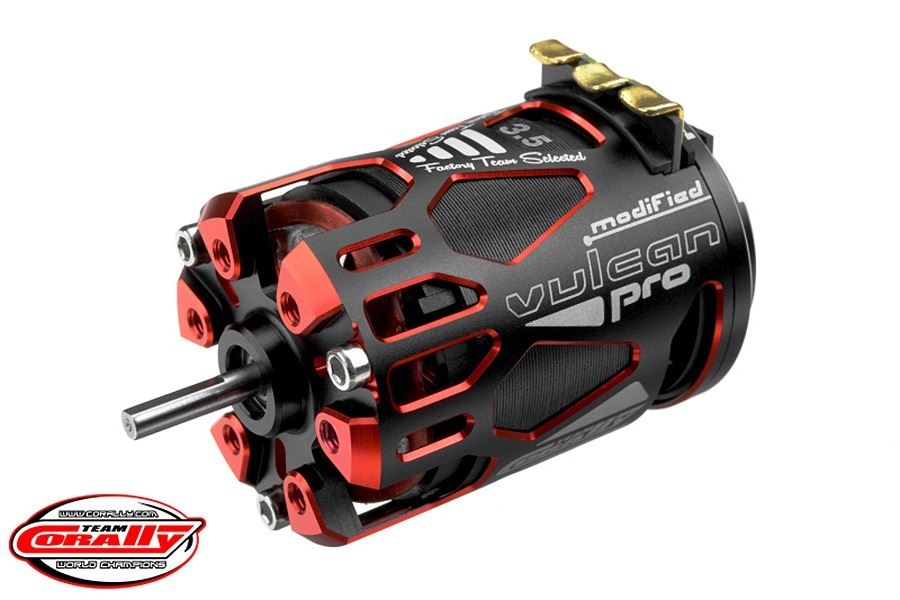

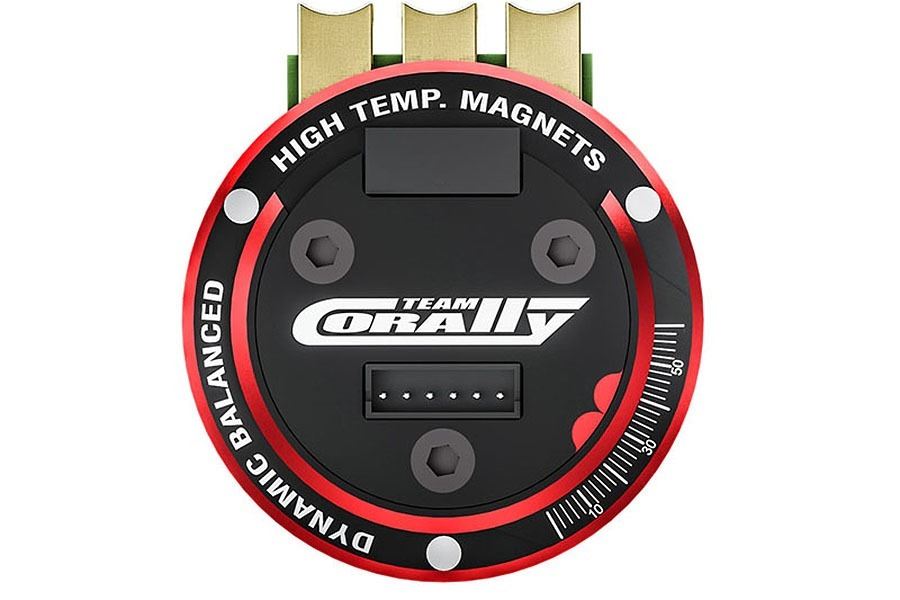

Corally Vulcan Pro Modified Sens Comp B/Less Motor 3.5T
The Team Corally Vulcan Pro modified class brushless motor series is a high performance motor line developed around trend-setting technologies.
We at Team Corally’s R-D department only have highest efficiency and maximum power in mind, when we designed this line of high-performance motors.
The result speaks for itself: impressive performance, more power, more top-end and this all keeping the motor temperature lower. The motors are made with high grade materials and every motor is balanced using state of the art balancing machines.
Features
- Precision machined T6 aluminum motor can
- High purity copper windings maximizes conductivity
- High power solder tabs
- Removable and replaceble rotor
- Powerful sintered Neodymium magnet
- Improved stator design for higher efficiency
- Dual Sensor Port
- Adjustable Timing
- Compatible with all Sensored/ Sensorless ESC
- Compliant with EFRA, IFMAR, ROAR, BRCA, DMC rules
Power Specification
Poles: 2-Pole
N° of Windings: 3.5T
KV: 9100
N° of Li-xx Cells: 1-2S
Max. Current (A): 130A
No Load Current (A): 9.1A
Technical Specification
Motor Length: 52.4mm
Motor Diameter: 35.8mm
Motor Shaft: 3.17mm
Sensor Ports: 2 Ports
Adjustable Timing: Yes
Weight: 165g
