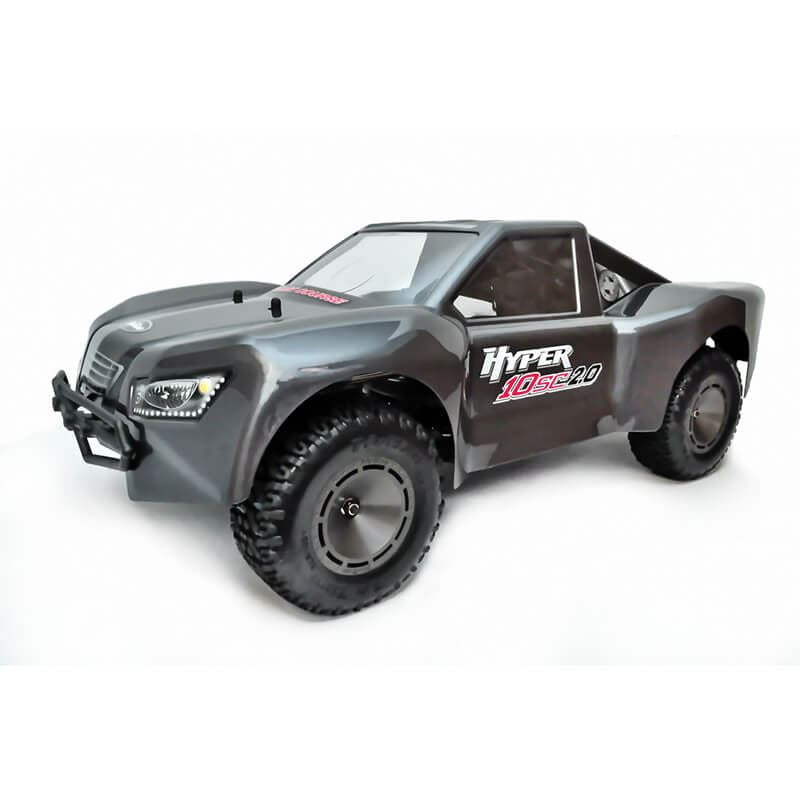

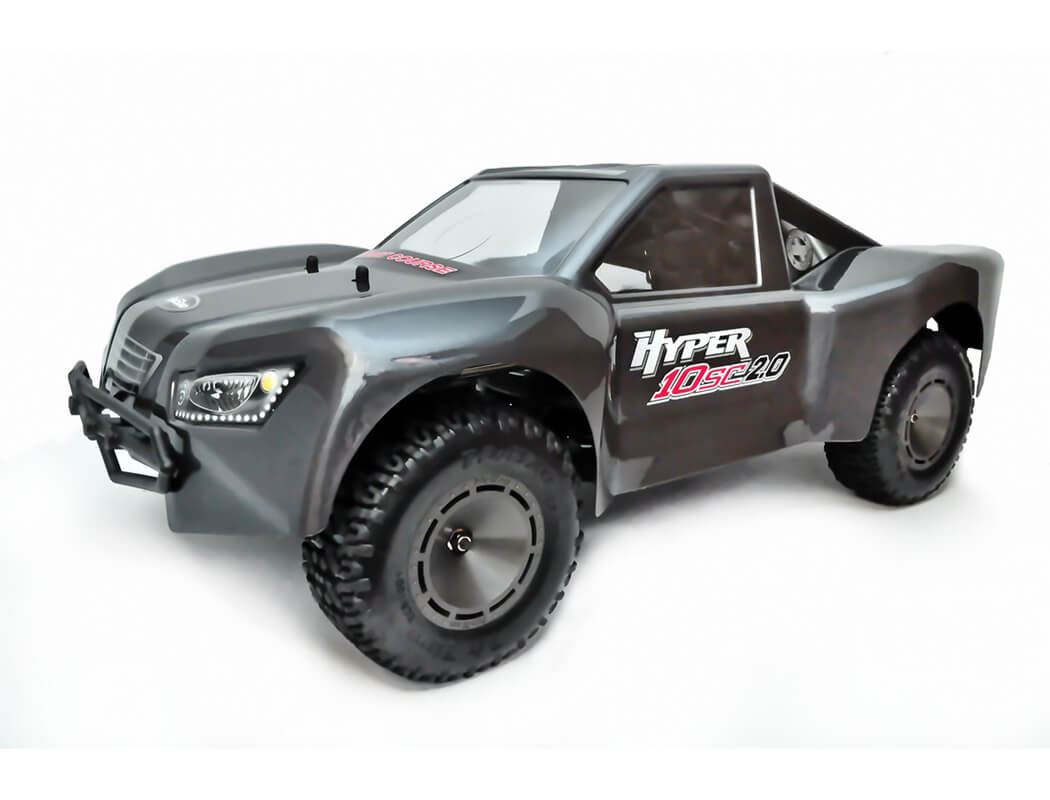

Hobao Hyper 10Sc 2.0 Electric Truck Rtr With Grey Body

Hobao Hyper 10Sc 2.0 Electric Truck Rtr With Grey Body

HOBAO HYPER 10SC 2.0 ELECTRIC TRUCK RTR WITH GREY BODY

Features

• All Metal Parts CNC Machined.
• Radio:
  – 3-channel 2.4GHz FHSS with dual rate steering and throttle.
  – Charge jack on transmitter for optional NiCd batteries.
• Servo:
  – High output ball bearing.
  – Metal gear.
  – Digital.
  – 18kg-cm torque.
• Motor:
  – 3900Kv brushless.
  – 4 pole.
  – Outer Diameter Ø36mm.
  – Shaft Ø3mm.
• ESC:
  – HobbyWing 60A waterproof ESC with single Deans plug battery connectors.
  – Cooling fan.
  – Program card .

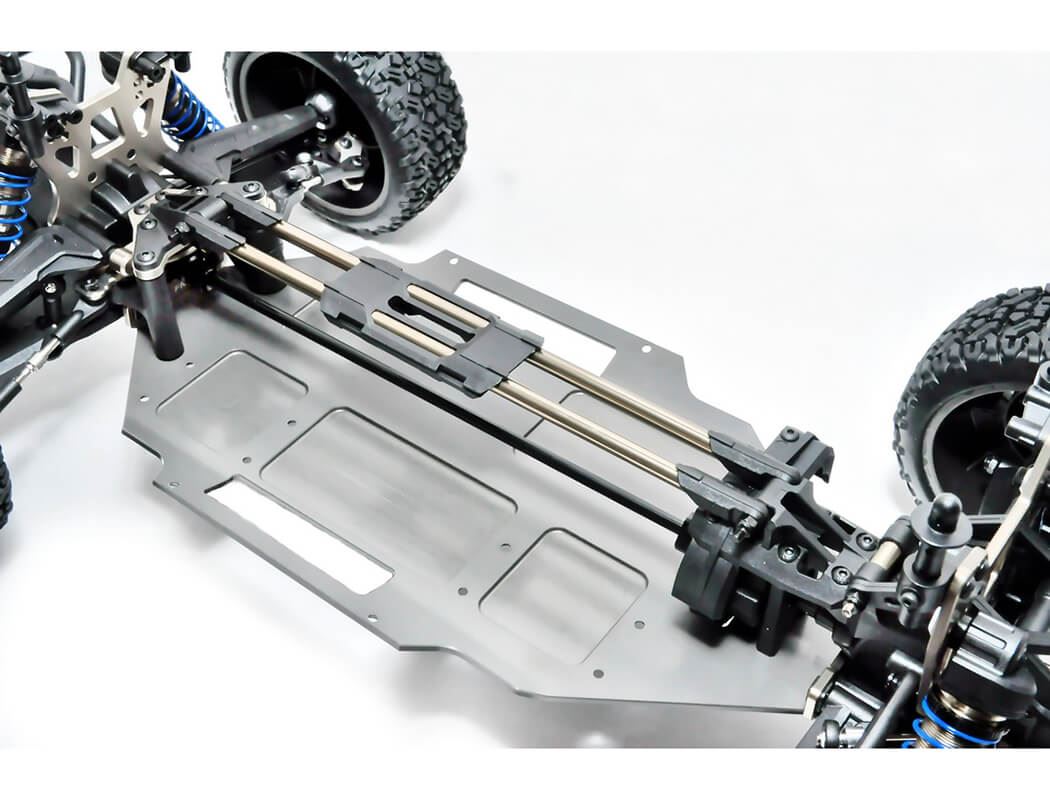

• Chassis: Lightweight, Hard anodised CNC aluminium, 3mm thick.
• Center Top Brace
  – Wire pass through.
  – Quick Release.
• Drive:
  – Central: Single Ø4mm Hardened steel center driveshaft.
  – Optional  Aluminum center driveshaft HOP1-0083.
  – Front wheel: CVA axles, Ø3.2mm Hardened steel.
  – Rear wheel: Dogbone axles, Ø3.4mm Hardened steel.
  – Optional rear wheel CVA axles HOP1-0082.
• Differentials:
  – Center differential is directly connected to rear differential.
  – Front, Rear and Center Differential, Metal Bevel gear, Anti-leakage Differential housing.
  – Pinion Gear: 10T (MOD 1)/ Ring Gear: 39T (MOD 1).
  – Center Spur Gear: 40T (MOD 1).
  – Motor Gear:13T (MOD 1).
  – Front differential filled with 20K silicone oil.
  – Center differential filled with 9K silicone oil.
  – Rear differential filled with 5K silicone oil.
• Shocks:
  – Filled with front 700 silicone oil and rear 600 silicone oil.
  – Aluminium 12mm Big Body, 3.5mm Shaft, Alum Adjustable Ring, Shock Cap Protector.
• Spring:
  – Front: 0.86kg/cm, L=50mm, Blue.
  – Rear: 064kg/cm, L=65mm, Blue.
  – Optional Front Spring HOP1-0073: 1kg/cm, L=50mm, Grey.
  – Optional Rear Spring HOP1-0074: 0.73kg/cm, L=65mm, Grey.
  – Shock Tower: 3mm CNC aluminium.
  – Optional carbon fiber shock tower, Front tower HOP1-0070 & Rear tower HOP1-0071.
• Suspension:
  – Front PBS.
  – New design steering block with enlarged pivot ball and alum steering arms.
  – Optional alum steering block set HOP1-0077; Alum rear hub HOP1-0079.
  – New strengthened composite upper arms and lower arms.( Also Fitting for older versions of the Hyper 10SC).
  – Optional carbon fiber arm insertHOP1-0068 and HOP1-0069.
  – Front & rear anti-roll bars.
  – New Alum front and rear arm holder.
  – Front and rear CNC alum arm holder with pill inserts H11367, adjustable toe angles and anti-squat angles.
• Steering:
  – New Steering Crank set with Strengthen CNC Aluminium steering rack and hard spring.
  – Ball bearing equipped with servo saver.
• Strengthen center body shell frame.
• Motor Mount:
  – CNC aluminium laydown motor mount.
  – Fitting for motors with size below 38mm.
  – Spur gear cover.
• Tyres:
  – 2.2″/3.0″ Short Course Tyres.
• Wheel Hex Hub:
  – Front 12mm wheel hex hubs , Plastic.
  – Rear 12mm wheel hex hubs, +1mm , Plastic.
  – Optional Front wheel hex hubs HOP1-0075; Rear wheel hex hubs HOP1-0076.
• Wheels:
  – 2.2″/3.0, 12mm H40127.
  – Optional 5-Spoke Wheels. H11034.
• Ball Bearings:
  – Full set included.
• Caster:
  – Adjustable.
• Camber:
  – Adjustable.

Specifications

Length: 550mm
Width: 306mm
Height: 195mm
Wheelbase: 325mm
Front Track: 235mm
Rear Track: 240mm
Weight: 2870g

Required To Complete

• LiPo batteries with single Deans Connector.
• Battery Charger.
• 4 x AA Batteries for Transmitter.
