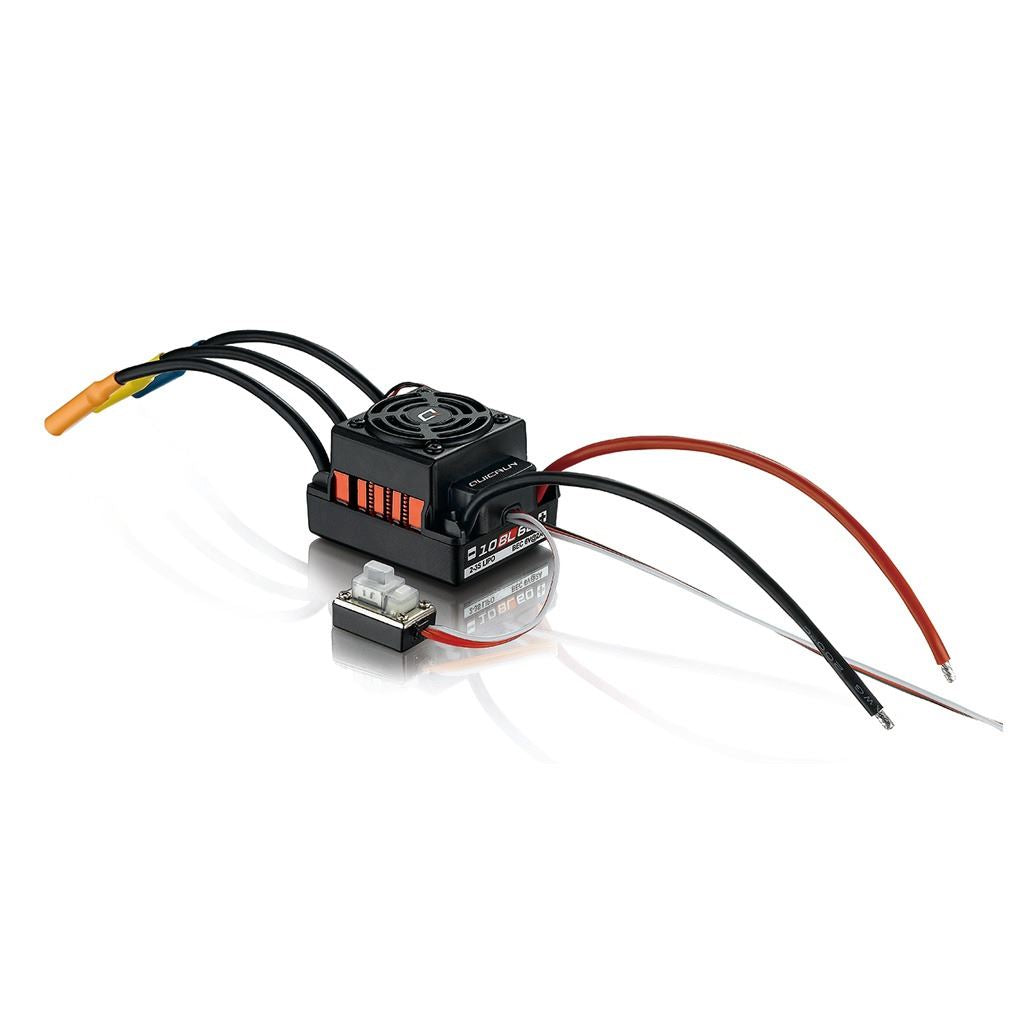

QUICRUN – WP – 10BL60 – BL – ESC – Waterproof
The speedo owns these outstanding features as listed below. External programming port, easy to connect to the Program Card when setting the ESC. Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment. 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks. Multiple protections like Low voltage cut-off protection, Over-heat protection, Throttle signal loss protection and Motor lock-up protection to extend the service life. One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings. Compatible with the optional device – the portable Digital LED Program Card, especially convenient for outdoor use.
Current – 60A/360A
Input – 4-9 Cells NiMH, or 2-3S Lipo
BEC Output – 6V/2A (Linear Mode)
Resistance – 0.001
Motor Supported – Sensorless Brushless Motor (compatible with sensored motor but
not in sensored operating mode)
Cooling Fan – Gets working voltage from battery directly without regulating,
The stock fan can work with 2S and 3S Lipo
Weight – 90g
Size – 48.5(L)X38(W)X32(H)mm
Motor Limit – For 2S Lipo or 6 cells NiMH
On-road: 3656-size or smaller motor with the KV<6000
Off-road/Buggy/Monster: 3656-size or smaller
motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
On-road: 3656-size or smaller motor with the
KV<4000
Off-road/Buggy/Monster: 3656-size or smaller
motor with the KV<3000
Car Applicable – 1:10 On-road/Off-road/Buggy/Monster
