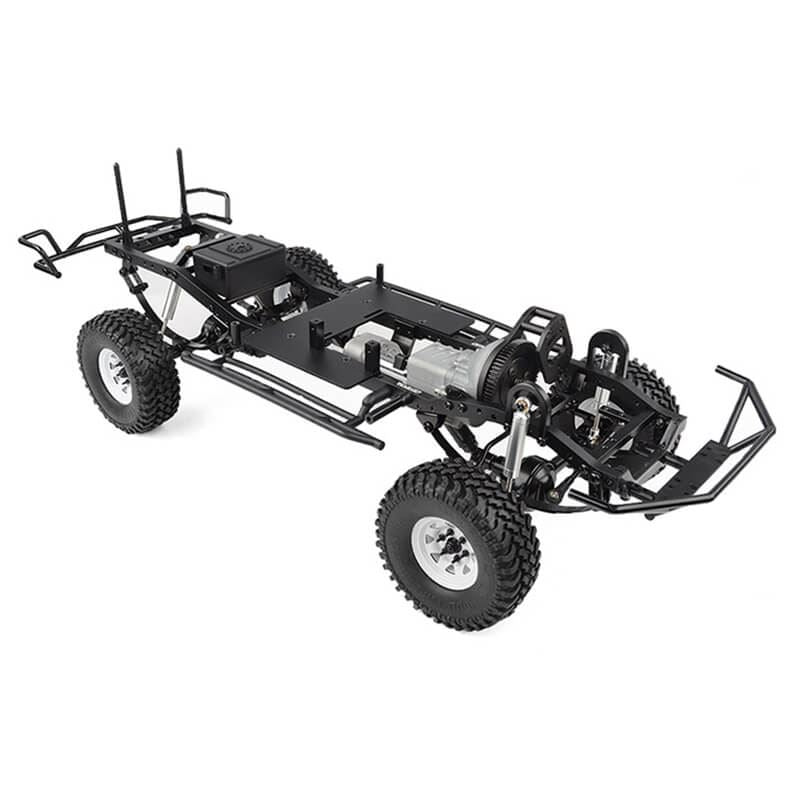

RC4WD TRAIL FINDER 2 TRUCK KIT “LWB” 1/10 SCALE LONG WHEEL BASE

The TF2 LWB Kit has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2 LWB Kit. Performance of the TF2 LWB Kit is smooth with its 2 speed selectable transmission, 4WD drivetrain, bulletproof transfer case and quality metal components throughout. The TF2 LWB Kit is truly a work of art in both appearance and performance.

Every TF2 LWB Kit is compatible with a full range of option and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck… The TF2 LWB Kit.

Your adventure awaits!

Features

• Custom Designed for True to Scale Looks
• Realistic Billet Aluminum Ladder Frame Chassis
• 2 Speed Remote Selectable Transmission
• Center Mounted Realistic 4×4 Transfer Case
• Yota II Ultimate Scale Cast Axles
• True to Scale Leaf Spring Suspension
• Highly Detailed Body with Dropped Bed and More
• 1.55″ Stamped Steel Beadlock Wheels with Lug Nuts
• Super Grip High Performance Mud Thrasher Tyres

• Realistic Tube Bumpers – Rock Rails – Skid Plate

All New Hammer Transfer Case

• Ratio: 1.47:1
• Gears: Wide .8 Mod Steel Gears
• Features: 8 Bearings, Cast Casing, Hardened Gears

All New R3 2 Speed Transmission

• Ratios:
  Pinion/Spur 14/64 = 4.57:1
  1st Gear 3.47:1
  2nd Gear 1.27:1
• Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
• Features: Machined Billet Aluminum Casing, Scale Looking, Motor Mount can be adjusted with up to 10 different positions, Compatible with other brand spurs (Axial, Traxxas, Robinson)

Yota II Ultimate Scale Cast Axles

• Ratio: 15/40 = 2.67:1
• Width at Hex (Using 4mm TF2 Hexes): 176.5mm

All New Trail Finder “LWB” 2 Chassis

• Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts

• High Quality Plastic Material, Very Durable High Quality Steel Yokes

Wheels

• Name: 1.55″ OEM Beadlock Wheels
• Hub: 12mm Hex
• Width: 22mm
• Back Spacing: 9mm
• Features: Stamped Steel, Aluminum Hub, Internal Beadlock, Very Scale Looking, 6 Lug Design

Bumpers

• Marlin Crawler Front Plastic Tube Bumper
• Marlin Crawler Rear Plastic Tube Bumper
• Marlin Crawler Side Plastic Sliders
• Authentic Looking Crawler Style Bumper, High Quality Flexible Plastic, Extremely Durable, Very Scale

Drivetrain

The R3 2 Speed Transmission comes with a fully machined billet aluminum case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. The newly designed motor mount is adjustable with up to 10 different positions.

The TF2 LWB Kit includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and new .8 Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the TF2 LWB Kit Drivetrain has the most durable gears RC4WD has to offer so the TF2 LWB Kit can stay on the trail, day after day.

The most scale accurate axles in the market. The RC4WD Yota II Ultimate Scale Cast Axles features innovative round knuckles, lower mounting points and compact offset pumpkins.

The Drive Shafts for the TF2 LWB Kit are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.

Suspension

The TF2 LWB Kit Chassis features a molded fuel cell that doubles as an electronics storage box and an aluminum, frame mounted under cab electronics tray for multiple mounting options for your electronics.

The TF2 LWB Kit includes a set of RC4WD Ultimate Scale Shocks. These shocks are designed for ultimate scale looks and optimum performance. They’re machined from billet aluminum, are internally sprung and are completely rebuildable!

The TF2 LWB Kit Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts for maximum strength.

The TF2 LWB Kit includes a set of RC4WD White Stamped Steel 1.55” Internal Beadlock Wheels. These wheel offer a super tough paintable white finish, aluminum internal ring and popular 6 Lug design.

Every TF2 LWB Kit needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

Specifications

Wheelbase: 314mm (12.36”)
Width: 211mm (8.30”)
Height: 149mm (5.86”)
Ground Clearance: 61.7mm (2.42”)
Final Drive Ratios: 1st – 62.1:1, 2nd – 22.75:1

What’s Included

• 1x RC4WD Trail Finder 2 Truck Kit “LWB” 1/10 Scale Long Wheel Base Chassis Kit

Please Note: This kit requires building time (approx. 2-3 hours) for body and electronics.

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

• Motor (35t, 45t or 55t)
• Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 2x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your “ESC” manual) Z-E0090 or Lipo battery
• Charger (Consult your battery guide) Chargers

Suggested Bodies

• Mojave II Four Door Complete Body Set (Z-B0119)
