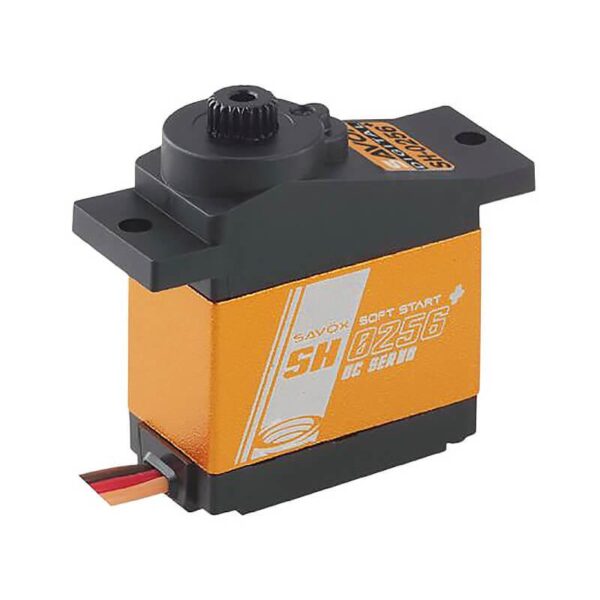

SAVOX MICRO SIZE DIGITAL SERVO 4.6KG@6V (HELI & PARKFLY) PLUS
SAVOX MICRO SIZE DIGITAL SERVO 4.6KG@6V (HELI & PARKFLY) PLUS
Micro size digital servo – Refined design brings out extraordinary performance. Idea for CCPM and Rudder on 450 level heli and Park Fly Airplanes.
Savox SH0256+ Features:
- Over-spec refined design overturns output limitation of ordinary micro size servo.
- The metallic body design not only exudes an exquisite style but helps the operating to stay cool and smooth from the beginning to the end.
- Production and quality control of plastic component in our servos follow the standard of branded digital camera.
- Professional and exquisite design and made gears form as the solid framework of our servos. Our design will make Crumbled Gear history.
- Totally Green from material to production, our servos are environmentally friendly.
Spec Check:
- Dimensions(mm): 22.8X12.0X29.4
- Weight(g): 15.8
- Speed(@4.8V sec/60): .21
- Torque(@4.8V oz-in): 54.2
- Speed(@6.0V sec/60): .16
- Torque(@6.0V oz-in): 63.9
- Gear: Metal & Plastic
- Bearing: 1BB
- Case: Aluminum
- 21 Tooth Spline
- Frequency: 200-250hz
- Pulse Width Frequency: 1520
Savox Plus / “+” Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
