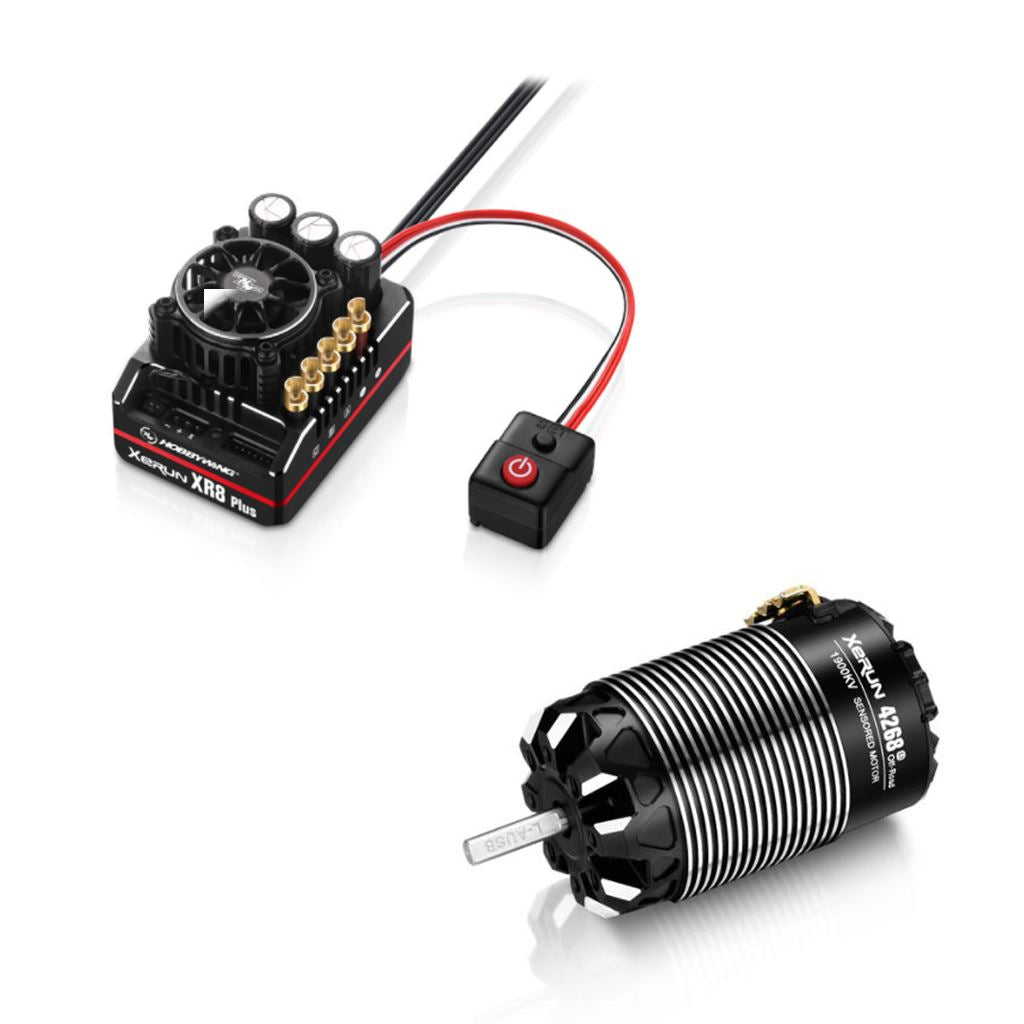

XERUN Combo- XR8 Plus G2S & 4268 2200kv G3-OFF RD
Full-sensored Mode Supported
The ESC can work the full-sensored mode at all times (when pairing it with a HOBBYWING matching motor).
Efficient heat dissipation system with lower temperature rise
The frameless fan design is a patented technology. The rapid transmission of internal heat to the integrated housing radiator are made up of high airflow from the side of the fan and a copper thermal conduction sink on the internal
power plate. These are built into high-reliability thermal systems to ensure that it is always in good thermal condition.
Application No: PCT/CN2021/115679
Durable frameless fan
The all-new frameless fan blades uses a special material and are extremely hard and reliable. It greatly reduces the damage of the fan blades caused by the impact of small stones, sand and other foreign objects. Thus, reduces the failure rate of the fan than compared with the traditional pbt fan.
1/8th power system, Boost & Turbo Timing Technology
This ESC pairing with Hobbywing motor can start Turbo Timing technology which succeeded in 1/8th On-Road contest. It supports 48 degrees Boost and Turbo Timing. When pairing with Hobbywing 4268/4274 G3 motor, the max. speed can be promoted by 50%. Easily win your rival.
Internal Battery-Reverse Polarity Protection Circuit
With the Built-in Reverse Voltage Protection circuit, ESC’s internal parts are all protected from Cross Connection of battery power.
RPM speed limit function
The ESC is able to support up to 6 different speed (RPM) selections to meet the needs and demands of various competitions in the world. It can be programmed through using the latest OTA Bluetooth module or the traditional 3in1 program box.
Programming / Upgrading / Data reading wirelessly
With Hobbywing’s OTA module and smartphone (with the HOBBYWING HW Link App installed), the user can program parameters, upgrade firmware and heck relevant data of the ESC.
Easy Obtain Running Status with Real-time Data Recording Function
With Hobbywing’s OTA module, Connect the HW Link App to the ESC and open the real-time data recording function, to check the throttle, voltage, current, temperature, RPM and other data in real-time. Easy obtain running status of ESC and motor.
Note: Due to transmission distance of bluetooth, the effective distance is only about 5m!
Multiple Programmable Items
The ESC contains nearly 30 adjustable parameters, including Throttle PWM Frequency, Brake Frequency, Softening Value / Range, Boost / Turbo Timing which are commonly used in 1/10th XR10 Pro series brushless ESC. It can accurately adjust the power settings to suit any driving style and track surface. Parameter are optimized for top-level competition applications.
Note: Use appropriate settings provided by the factory or team drivers. Check operating temperature in order to maximize your electronics. The wrong settings may damage the ESC/motor!
Capacitor Thermal Protection
Capacitor thermal protection implemented by the ESC will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload.
Super Internal BEC
The built-in switch mode BEC with a maximum output of 15A and voltage adjustable from 6V to 8.4V (step:0.1V) allows the use of various standard servos, high voltage servos.
Excellent dustproof performance
The ESC is IP5X. Its excellent dustproof performance can easy to overcome various On-Road & Off-Road contest track.
Custom ultra-soft 11AWG silicone wire
The ultra-soft 11AWG silicone wire is specially chosen for this product. The wire is ultra-flexible and low in resistance, making it the perfect combination to for your electronics.
Customized solder tabs, easy to solder
The solder tabs are specially customized by Hobbywing. They are made wider, a larger surface area in order to.
Specifications
Type
Scale – 1/8th
Brushed/Brushless – BL
Sensored/Sensorless – SD
Waterproof – No
Specifications
Cont./Peak Current – 200A/1080A
Input Voltage – 2-6S Lipo
BEC Output – 6-8.4V Adjustable, Continuous/Peak Current: 6A/15A(Switch-mode)
Wires & Connectors
Black-11AWG-200mm*2
Output Wires – Black-11AWG-200mm*3
Input Connectors – No
Output Connectors – No
Fan
Size – 30x30x10mm
Voltage Range – 5-8.4V
Powered by
Powered by BEC
ESC Programing via
SET Button on ESC – Not Supported
LED Program Box – Not Supported
LCD Program Box – Supported
OTA Programmer – Supported
Programming Port – Independent programming port
Firmware
Firmware Upgrade – Supported
Size & Weight
Size – 56.1mmx42.1mmx38.5mm
Weight
122g(w/wires)
Applications
Applications
SL BL Motors
SD BL Motors
Vehicles
1/8th On-Road/Off-Road/Truggy Racing
KV Rating/T Count
4S LiPo： 4268/4274≤3000KV
6S LiPo：4274≤2400KV
1/8th brushless power system with the implementation of a pure signal sensor mode circuit.
Built-in intelligent integrated circuit is used so the sensor unit can easily be identified by the ESC
when pairing with Hobbywing’s XeRun XR8 series of ESC’s the motor will operate in “Pure Sensored”
mode at all times, providing a better performance and a smoother throttle response.
1/8th Power system & Turbo Timing technology
can be used when this motor is paired with Hobbywing’s XERUN XR8 series of ESC’s the Motor can
use the Turbo Timing technology which was designed for the XR10 Pro series of Esc’s used in 1/10th
On and Off road Competion.The motor will increase to maximum power output instantly.The maximum
speed will increased by as much as 50% more than the output of the previous G2 series motors
keeping you way ahead of the competition.
Please Note: When tue G3 Series motors are paired with XR8 Pro
G2 ESC the turbo feature can be set to the maximum of 48º.
The mechanical turbo timing of motor can be accurately adjusted in both directions (CW / CCW)
The mechanical turbo timing can be adjusted between 20-40°. It is convenient for driver to calibrate
accurately output power of motor and meet power requirements of various application.
The efficiency is improved greatly, effectively reducing the temperature incease
Compared with XERUN 4268/4274 G2, the motor structure is greatly optimized, the efficiency is improved by 6% or more,
which reduces the motor temperature increase effectively (Reducing thermal runaway).
The G3 Series is Fail Safe and reliable using Hobbywing’s new motor Hall sensor technology
The motor sensor system adopts patented technology of “error-free” Hall sensor technology, with an independent high-speed and high-precision encoder of which will always output a pure and accurate rotor position signal, which effectively will isolate any external interference which are known to cause errors of the sensor signal. This accurate sensor system will allow the motor to function at its peak performance in a very stable sensor state.
Excellent dustproof design.
The Off-Road motor is IP5X. Its excellent dustproof design will minimise debri entering
the motor which is very well known to effect Off-Road applications.
